Bass Trombone Fingering Chart

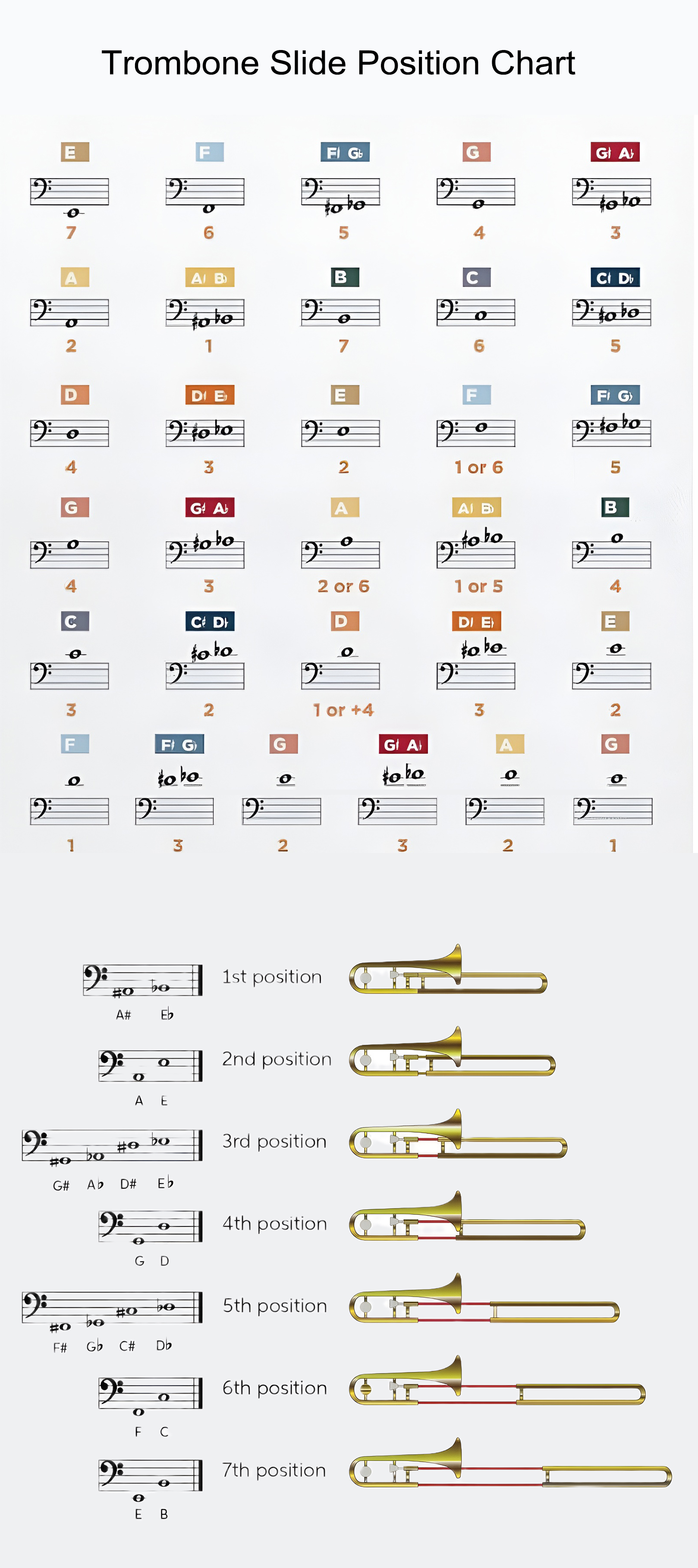

Bass Trombone Fingering Chart Image (PRINTABLE)

High-quality color PDF perfect for printing and carrying with you. Go to Download Page or open PDF directly: Open PDF

BEGINNER BASS TROMBONE FINGERING CHART

(Bass Trombone | 7 Slide Positions + F-Attachment Valve)

1. Basic Slide Position + Valve Combinations

Note	Slide Position	Valve	Description
C2	6	F-attachment	Lowest note, requires F-valve
D2	4	F-attachment	One whole step up from C2
E2	2	F-attachment	Major third from C2
F2	1	F-attachment	Perfect fourth from C2
G2	4	None	Perfect fifth from C2
A2	2	None	Major sixth from C2
Bb2	1	None	Major seventh from C2
C3	6	None	One octave above C2

Tip: The F-attachment valve extends the range downward and provides alternate fingerings. Practice both with and without the valve!

2. Essential Beginner Scales

Practice these scales to build slide position accuracy, valve coordination, and embouchure control.

3. Simple Practice Melodies

(Great for applying new slide positions and valve combinations!)

4. Bass Trombone Slide Position + Valve Tips for Beginners

Understanding Bass Trombone Slide Positions and Valves

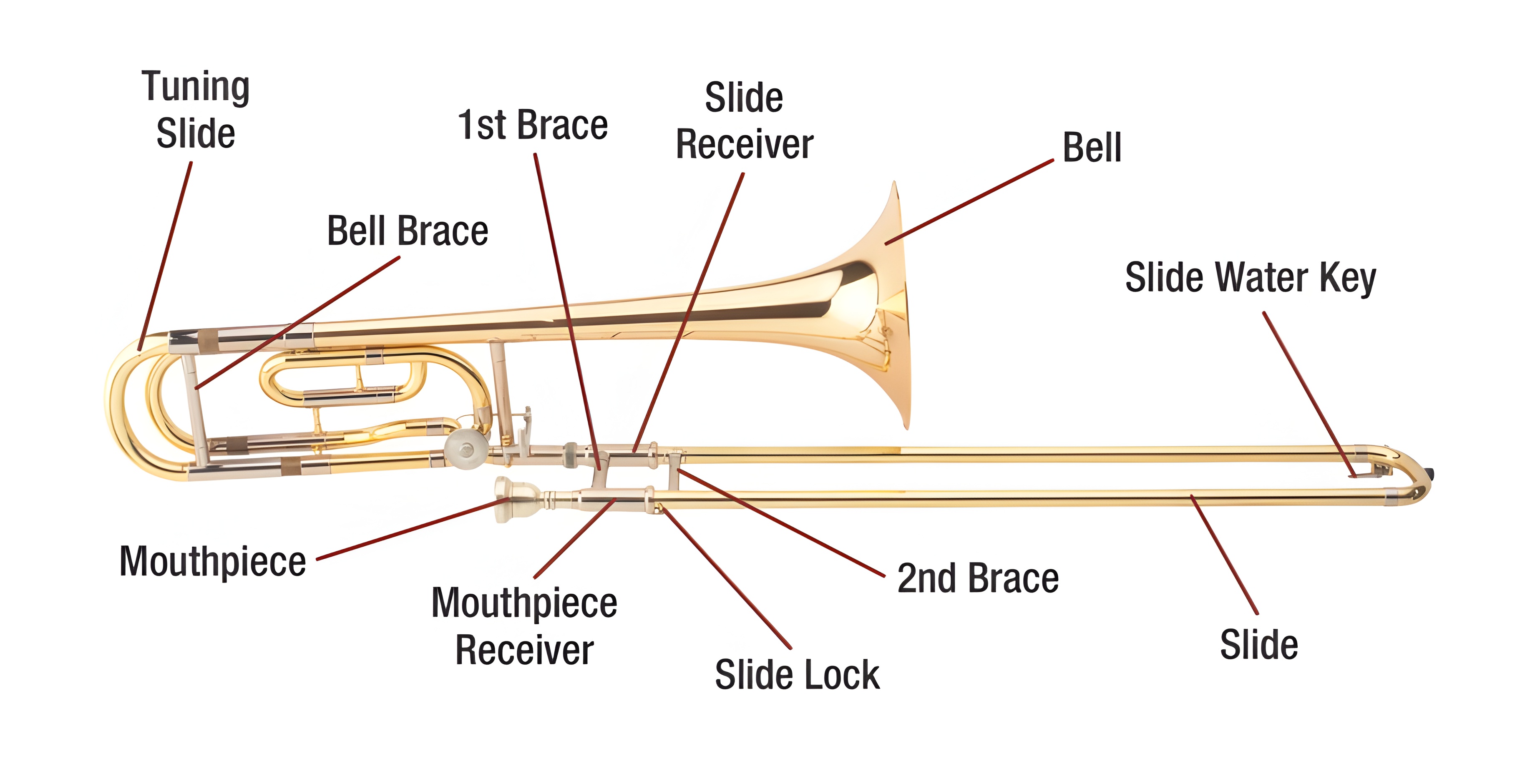

Bass Trombone Anatomy and Parts

Before learning slide positions and valve combinations, it's essential to understand the bass trombone's main components and how they work together to produce sound.

Key Components:

• Mouthpiece: Where you buzz your lips to create sound
• Lead pipe: Connects mouthpiece to main slide
• Inner slide: Movable inner tubing
• Outer slide: Stationary outer tubing
• F-attachment valve: Additional valve for extending range
• Bell: Larger than tenor trombone, amplifies and projects sound
• Water key: Releases condensation from the instrument
• Tuning slide: Adjusts overall pitch of the instrument

How Slide Positions and Valves Change Bass Trombone Pitch

The bass trombone combines slide positions with additional valves to extend the range and provide alternate fingerings. The F-attachment valve adds extra tubing, lowering the fundamental pitch.

Slide Position Functions:

• Position 1: Slide closest to player (shortest tube)
• Position 2: Slide slightly extended
• Position 3: Slide moderately extended
• Position 4: Slide halfway extended
• Position 5: Slide mostly extended
• Position 6: Slide nearly fully extended
• Position 7: Slide fully extended (longest tube)

F-Attachment Valve Function:

• F-attachment engaged: Adds extra tubing, lowering pitch by perfect fourth
• F-attachment disengaged: Normal slide positions
• Combined use: Allows access to lower notes and smoother slide transitions

Understanding Musical Notes

Musical notes are organized in a specific pattern. Understanding this pattern is crucial for reading music and learning slide positions and valve combinations.

Want a deeper primer? Read our Music Notes Guide for beginners.

The Musical Alphabet:

Musical notes use the letters A, B, C, D, E, F, G, then repeat. In bass trombone music, low C is written as C2.

• Natural Notes: C, D, E, F, G, A, B
• Sharp (♯): Raises a note by one half step (e.g., C♯)
• Flat (♭): Lowers a note by one half step (e.g., B♭)

Note: Bass trombone is a non-transposing instrument - when you play "C", it sounds as C on piano.

Half Steps and Whole Steps

Understanding the distance between notes is essential for learning scales and slide position patterns.

Half Step (Semitone):

The smallest distance between two notes. On a piano, it's from one key to the very next key (including black keys).

Examples:

• C to C♯ (or D♭)
• E to F
• B to C

Whole Step (Tone):

Equal to two half steps. Skip one key on the piano.

Examples:

• C to D (2 half steps)
• F to G (2 half steps)
• A to B (2 half steps)

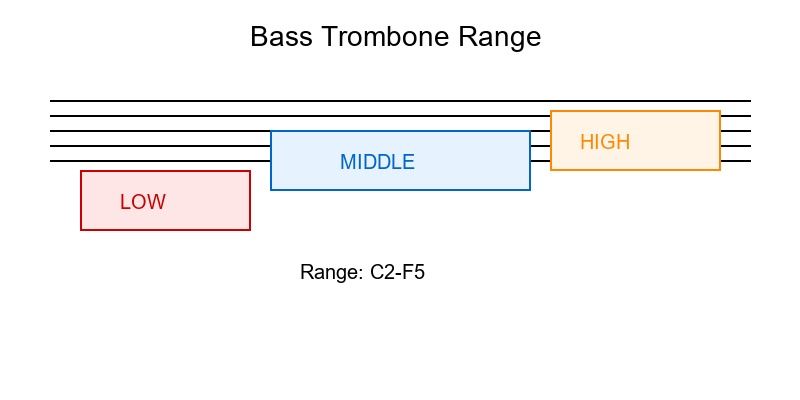

Bass Trombone Octaves and Pitch Ranges

An octave is the interval between one note and another with the same letter name but different pitch. The bass trombone typically covers about 2.5 octaves.

Bass Trombone Range:

• Low Register: C2 to F2 (pedal tones and bottom of range)
• Middle Register: F2 to C4 (most comfortable for beginners)
• High Register: C4 to F4 and above (requires advanced technique)

Octave Example: C2 to C3 is one octave. Same slide position, different lip tension and air speed.

Common Bass Trombone Slide Position + Valve Combinations Chart

Here are the most frequently used bass trombone slide position and valve combinations. The same combination can produce different notes depending on your embouchure (lip position and tension).

Tip: Notice how the F-attachment valve allows access to lower notes that would otherwise require slide position 8 or beyond!

Harmonic Series on Bass Trombone

The bass trombone produces notes based on the harmonic series. With changes in lip tension and air flow, the same slide position and valve combination can produce different harmonic levels.

The harmonic series for position 1 with F-attachment:

• 1st harmonic: Pedal F (F1) - rarely used
• 2nd harmonic: F2 - fundamental, easy to produce
• 3rd harmonic: C3 - perfect fifth above F2
• 4th harmonic: F3 - octave above F2
• 5th harmonic: A3 - major third above F3
• 6th harmonic: C4 - perfect fifth above F3

Each slide position and valve combination has its own harmonic series, giving the bass trombone its full range of notes.

How to Hold the Bass Trombone Correctly

Right hand: thumb and index finger grip the slide brace, middle, ring, and pinky fingers support the slide. Left hand: thumb operates the F-attachment valve, index and middle fingers wrap around the tubing, keep relaxed. Keep the instrument level with your mouth centered on the mouthpiece.

How to Learn to Play the Bass Trombone

• Start with basic notes: establish steady breath support and embouchure, focus on middle register (F2-C3).
• Practice slide positions and valves: use the interactive chart above to click through combinations while practicing sound production.
• Scale practice: work on F major and B♭ major scales to reinforce slide positions and valve combinations.
• Keep slide position + valve chart handy: reference during lessons and practice to avoid developing bad habits.
• Practice simple melodies: like "Twinkle Twinkle Little Star" and "Ode to Joy" to improve musical flow.
• Expand range: gradually explore higher and lower notes while maintaining relaxation.
• Use interactive tools: utilize this page's interactive chart or other slide position + valve simulators for practice.

Best Beginner Bass Trombone Brands and Models

High-value beginner options: Yamaha YBL-620, Bach TB-200, Jupiter JBL-430, Eastman ETR420. Before purchasing, check build quality, slide action, valve response, intonation, and warranty. We recommend trying instruments in person with guidance from a teacher or professional.

Practice Tips and Common Mistakes

• Incorrect slide technique: keep slide parallel to ground, avoid sideways pressure.
• Too much or too little slide pressure: aim for smooth, even movement, avoid "slamming" the slide.
• Lack of practice structure: set weekly goals (scales, pieces, long tones) and track progress.
