Sousaphone Fingering Chart
Interactive fingering overview • bass-clef reading • downloadable PDF
Interactive Sousaphone Fingering Chart
🛠️ How to Use This Chart
Step 1: Choose Key Signature
Select a key to show which notes are sharp/flat for your music.
Step 2: Click a Written Note
Match the bass‑clef note to its valve combination (0=open; 1–4=valves).
Step 3: Check Intonation
Use a tuner. 4th‑valve alternates often improve low‑range tuning and resonance.
Select a Note (Typical BB♭ Sousaphone)
Sousaphone Fingering Chart Image
High‑quality color PDF perfect for printing and carrying with you. Go to Download Page or open PDF directly: Open PDF
📚 Complete Sousaphone Fingering Guide
For details on 4th‑valve usage, marching ergonomics, and tuning strategies, see the full guide.
BEGINNER SOUSAPHONE FINGERING CHART (PRINTABLE)
(BB♭ Sousaphone | 3-4 Valves)
1. Basic Valve Combinations
| Note (Written) | Fingering | Valve Combination | Description |
|---|---|---|---|
| Bb2 | 0 | Open | Home pitch, easiest to produce |
| C3 | 4 | Fourth valve | Preferred over 1+3 for better intonation |
| D3 | 1+2 | First and second valves | Alternative: 3 if sharp |
| Eb3 | 1 | First valve only | Check slide if flat |
| F3 | 0 | Open | Stable mid-range note |
| G3 | 1+2 | First and second valves | Center pitch with steady air |
| A3 | 1 | First valve only | Major sixth from Bb |
| Bb3 | 0 | Open | One octave above Bb2 |
Tip: The same fingering can produce different notes by changing embouchure and air speed. Use the 4th valve for low notes to improve intonation and resonance!
2. Essential Beginner Scales
Practice these scales to build valve coordination, embouchure control, and breath support for marching.
Bb Major Scale
Bb2 (0) - C3 (4) - D3 (1+2) - Eb3 (1) - F3 (0) - G3 (1+2) - A3 (1) - Bb3 (0)
F Major Scale
F2 (0) - G2 (1+2) - A2 (1) - Bb2 (0) - C3 (4) - D3 (1+2) - E3 (2) - F3 (0)
Eb Major Scale
Eb2 (1) - F2 (0) - G2 (1+2) - Ab2 (1+3) - Bb2 (0) - C3 (4) - D3 (1+2) - Eb3 (1)
3. Simple Practice Melodies
(Great for applying new valve combinations!)
"Hot Cross Buns":
Bb3 (0) - A3 (1) - G3 (1+2)
Bb3 (0) - A3 (1) - G3 (1+2)
G3 (1+2) - G3 (1+2) - G3 (1+2) - G3 (1+2)
A3 (1) - A3 (1) - A3 (1) - A3 (1)
Bb3 (0) - A3 (1) - G3 (1+2)
"Mary Had a Little Lamb":
E3 (2) - D3 (1+2) - C3 (4) - D3 (1+2) - E3 (2) - E3 (2) - E3 (2)
D3 (1+2) - D3 (1+2) - D3 (1+2)
E3 (2) - G3 (1+2) - G3 (1+2)
"Ode to Joy":
E3 (2) - E3 (2) - F3 (0) - G3 (1+2)
G3 (1+2) - F3 (0) - E3 (2) - D3 (1+2)
C3 (4) - C3 (4) - D3 (1+2) - E3 (2)
4. Sousaphone Fingering Tips for Beginners
- Use warm, low air from your diaphragm - low notes require more air volume, especially when marching.
- Maintain a relaxed embouchure (lip position) - avoid excessive mouthpiece pressure.
- Press valves quickly and completely, but without excessive force - keep fingers curved and close to valves.
- Practice finding each valve combination accurately - use a tuner to check intonation.
- Use the 4th valve for low C, B, and Bb - it provides better intonation than 1+3 or 1+2+3.
- Start with the middle register (Bb2-F3) - it's the most stable for beginners and marching.
- Learn proper carrying technique - seat the shoulder ring comfortably, bring the mouthpiece to you.
- Practice long tones on each valve combination to develop a steady sound.
- Use a mirror to check your posture, hand position, and embouchure.
- Don't grip the instrument too tightly - tension harms tone and endurance.
- Practice lip slurs (changing partials on the same fingering) to develop embouchure flexibility.
- Learn to read bass clef fluently - most sousaphone music is written in bass clef.
- When marching, stabilize the bell angle and use buoyant steps to minimize embouchure shocks.
- Lock with the bass drum in ensemble playing - prioritize steady time and core tone.
- Listen to professional sousaphone players for inspiration and sound concept.
- Clean and oil your valves regularly for smooth action.
- Be patient - mastering valve combinations, breath support, and marching technique takes time.
- Practice with a metronome to develop consistent timing, especially for marching.
- Work on clean articulation - use a light "tu/du" tongue placement for clarity.
- Balance air speed and embouchure to center the intended partial - avoid forcing high notes.
- Use valve slides to fine-tune intonation - pull slides slightly if notes are sharp.
- Practice step-offs and horn swings for marching fundamentals.
Understanding Sousaphone Fingerings
Sousaphone Anatomy and Parts Diagram
The sousaphone is a wrap‑around marching tuba with a forward‑facing bell for projection on the field. Players buzz into a large mouthpiece; valves add tubing to lower pitch. The shoulder support ring distributes weight while allowing mobility.
Key Components:
- Mouthpiece: Large cup supporting low‑frequency response
- Leadpipe: Connects mouthpiece to valve block
- Valves (1–3/4): Piston valves lengthen tubing to lower pitch
- Valve slides: Circuit tuning for each valve
- Main tuning slide: Overall pitch control
- Shoulder ring and body wrap: Supports carry position
- Forward bell: Projects sound toward audience
How Valves Change Pitch
Valve 1 ≈ whole step, Valve 2 ≈ half step, Valve 3 ≈ minor third. A 4th valve (if present) adds a perfect fourth, replacing 1‑3/1‑2‑3 in the low register for better intonation and response.
🎶 New to Bass Clef?
Sousaphone parts read in bass clef. Solid note recognition speeds up fingering fluency.
Read our Music Notes Guide for a quick primer.

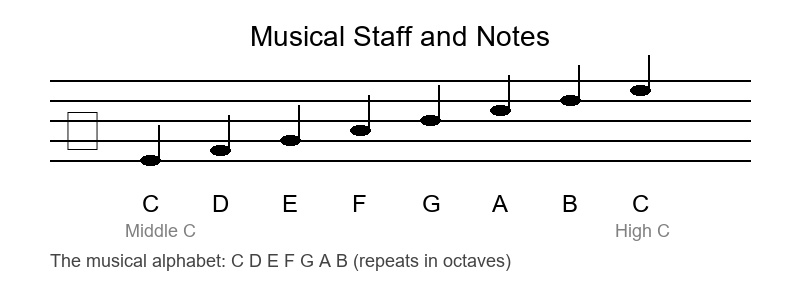

Understanding Musical Notes
Notes repeat across octaves. Sousaphone (BB♭) reads concert pitch in bass clef; typical marching literature emphasizes mid‑register clarity and time feel.

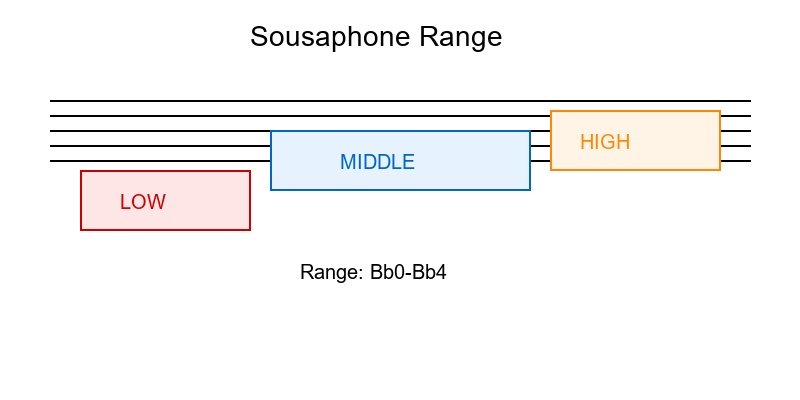

Sousaphone Range and Registers (BB♭)
Usable range centers on F2–C4 written for balance of power and control on the move.
- Low: E1–Bb2 — warm air; prefer 4th‑valve alternatives
- Middle: B♭2–G3 — most stable for marching ensemble work
- Upper: A3–C4+ — focused air; avoid overblowing
Common Sousaphone Fingering Combinations (BB♭)
| Note | Fingering | Valve Combination | Use/Comment |
|---|---|---|---|
| BB♭ (Bb2) | 0 | Open | Home pitch; tune to ensemble |
| C (C3) | 1‑3 or 4 | First+Third or Fourth | 4 improves low‑range intonation |
| D (D3) | 1‑2 | First+Second | Alt 3 for pitch tendencies |
| Eb (Eb3) | 1 | First | Adjust slide if flat |
| F (F3) | 0 | Open | Stable mid‑range note |
| G (G3) | 1‑2 | First+Second | Center pitch with steady air |
| BB♭ (Bb3) | 0 | Open | One octave above Bb2 |
Tip: In formations, prioritize steady time and core tone; adjust dynamics to ensemble needs while maintaining pitch center.
Harmonic Series on Sousaphone
Valve settings select a fundamental series; embouchure and air speed choose the partial. Open (0) on a BB♭ sousaphone yields Bb2, F3, Bb3, D4, F4, etc.
How to Carry and Play the Sousaphone
Seat the shoulder ring comfortably; avoid twisting the torso. Bring the mouthpiece to you without craning the neck. Keep the right hand relaxed over valves; the left arm balances the horn. When marching, stabilize the bell angle and use buoyant steps to minimize embouchure shocks.
How to Learn to Play the Sousaphone
- Mid‑register long tones (Bb2–F3) for breath control and ensemble blend.
- Lip slurs across 0, 1, 2, 1‑2, 2‑3, 1‑3/4 patterns for flexibility.
- Scales in Bb, F, Eb, C; practice with metronome and drone.
- Marching fundamentals: step‑offs, horn swings, and controlled breathing.
- Section roles: lock with bass drum; prioritize articulation clarity.
Best Beginner Sousaphone Models
Solid student/intermediate choices include Yamaha YSH‑301/411 (BB♭), Conn 20K, King 2350, and Jupiter JSP1100. Check valve compression, slide fit, shoulder ring comfort, and bell stability. Test with an instructor when possible.
Practice Tips and Common Mistakes
- Air and support: Warm, steady air; avoid forcing volume in upper register.
- Valve timing: Quiet, simultaneous motion for clean slurs.
- Intonation: Use 4th‑valve alternatives for low C/B/Bb; manage slides.
- Posture/march: Bring horn to you; stabilize bell; maintain neutral head and neck.
- Structure: Daily: long tones → slurs → scales → repertoire → cooldown.
